RGQ 3 Mobile

Features RGQ 3 Mobile

The “RGQ 3 Mobile App” allows you to receive, store and graphically visualize real-time gas quality measurement.
The App connects via Bluetooth™ Low Energy (BLE) to RMGs “RGQ 3 Mobile” gas analyzer device.Disclaimer: The App can ONLY connect to a purchased “RGQ 3 Mobile” gas analyzer device.
Pairing is password protected.
Without this device the App DOES NOT provide any meaningful data or result.The “RGQ 3 Mobile” (https://www.rmg.com/rgq) is a portable analyzer specifically designed around our patented multiparameter millisecond measurement sensor unit.
The analyzer measures every second the dynamic viscosity, thermal conductivity, absolute temperature and pressure of any measured combustible gas composition.
Our proprietary correlative models calculate physical gas parameters such as Calorific content (HHV & LHV), Wobbe Index, density, Air Fuel Ratio (AFR and SAFR) as well as the Methane Number (MN).
This according to the relevant AGA, ISO, NIST and GPA standards.

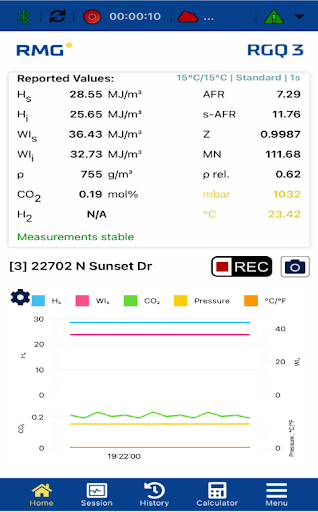

The data retrieved by the “RGQ 3 Mobile App” is made numerically and graphically visible real-time in the App.
The App stores the retrieved data on a dedicated password protected website.
Here the user can do further analysis of the measured data like historical and site by site comparisons.
It allows the user further analyze impact of the gas quality variations on the combustion efficiency and produced emissions of the customers process equipment (like gas boilers/burners, gas engines, biogas plants, etc).
The recorded data is also very useful for gas distribution companies (for real-time quality monitoring) and fiscal metering applications.
